Circuits dataset generation functions

Functions to create a quantum circuit dataset.

Generate random circuits


source

CircuitConditionType

 CircuitConditionType (*values)

*Create a collection of name/value pairs.

Example enumeration:

class Color(Enum): … RED = 1 … BLUE = 2 … GREEN = 3

Access them by:

  • attribute access:

    Color.RED <Color.RED: 1>

  • value lookup:

    Color(1) <Color.RED: 1>

  • name lookup:

    Color[‘RED’] <Color.RED: 1>

Enumerations can be iterated over, and know how many members they have:

len(Color) 3

list(Color) [<Color.RED: 1>, <Color.BLUE: 2>, <Color.GREEN: 3>]

Methods can be added to enumerations, and members can have their own attributes – see the documentation for details.*


source

get_rnd_encoded_circuit

 get_rnd_encoded_circuit
                          (backend:genQC.platform.backends.base_backend.Ba
                          seBackend, tokenizer:genQC.platform.tokenizer.ci
                          rcuits_tokenizer.CircuitTokenizer,
                          condition:__main__.CircuitConditionType,
                          num_of_qubits:int,
                          gate_pool:Optional[Sequence[str]],
                          min_gates:int, max_gates:int,
                          rng:numpy.random._generator.Generator,
                          optimized:bool=True,
                          post_randomize_params:bool=True,
                          return_params:bool=True)

Generate a random circuit with corresponding condition.


source

get_rnd_encoded_circuits

 get_rnd_encoded_circuits
                           (backend:genQC.platform.backends.base_backend.B
                           aseBackend, tokenizer:genQC.platform.tokenizer.
                           circuits_tokenizer.CircuitTokenizer,
                           condition:__main__.CircuitConditionType,
                           samples:int, num_of_qubits:int, min_gates:int,
                           max_gates:int, min_sub_gate_pool_cnt:int=1,
                           max_sub_gate_pool_cnt:Optional[int]=None, fixed
                           _sub_gate_pool:Optional[Sequence[str]]=None,
                           max_num_params:Optional[int]=None,
                           filter_unique:bool=True, optimized:bool=True,
                           post_randomize_params:bool=True,
                           return_params:bool=True, silent:bool=False)

Generate ´samples´ number of random circuits with corresponding condition. Creates prompts for conditioning.

Dataset generation


source

generate_circuit_dataset

 generate_circuit_dataset
                           (backend:genQC.platform.backends.base_backend.B
                           aseBackend, tokenizer:genQC.platform.tokenizer.
                           circuits_tokenizer.CircuitTokenizer,
                           condition:__main__.CircuitConditionType,
                           total_samples:int, num_of_qubits:int,
                           min_gates:int, max_gates:int,
                           batch_samples:int=128, n_jobs:int=1,
                           unitary_dtype:torch.dtype=torch.float16,
                           min_sub_gate_pool_cnt:int=1,
                           max_sub_gate_pool_cnt:Optional[int]=None, fixed
                           _sub_gate_pool:Optional[Sequence[str]]=None,
                           max_num_params:Optional[int]=None,
                           filter_unique:bool=True, optimized:bool=True,
                           post_randomize_params:bool=True,
                           return_params:bool=True)

*Generates ´samples´ number of random circuits with corresponding condition. Supports large scale dataset with large unitaries. Uses memory mapping and parallelization.

  • ´unitary_dtype´ only relevant for ´condition=CircuitConditionType.UNITARY´*

Test

from genQC.platform.simulation import Simulator, CircuitBackendType
simulator = Simulator(CircuitBackendType.QISKIT)
tokenizer = CircuitTokenizer({"rx":1, "ccx":2, "u":3, "cp": 4})
list(tokenizer.vocabulary)
['rx', 'ccx', 'u', 'cp']

Random circuits with condition

qc, condition, qc_tensor, params_tensor = get_rnd_encoded_circuit(backend=simulator.backend,
                                                                  tokenizer=tokenizer,
                                                                  condition=CircuitConditionType.UNITARY,
                                                                  gate_pool=tokenizer.vocabulary,
                                                                  num_of_qubits=3,
                                                                  min_gates=4,
                                                                  max_gates=8,
                                                                  rng=np.random.default_rng())

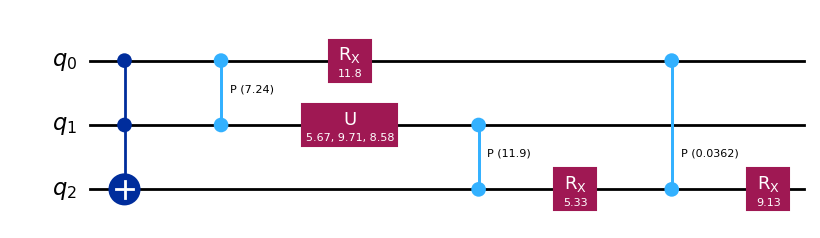

display(qc.draw("mpl"), qc_tensor, params_tensor, condition)

tensor([[-2,  4,  1,  0,  0,  0,  4,  0],
        [-2,  4,  0,  3,  4,  0,  0,  0],
        [ 2,  0,  0,  0,  4,  1,  4,  1]], dtype=torch.int32)
tensor([[ 0.0000,  0.1530,  0.8770, -0.0982,  0.8894, -0.1517, -0.9942,  0.4529],
        [ 0.0000,  0.0000,  0.0000,  0.5461,  0.0000,  0.0000,  0.0000,  0.0000],
        [ 0.0000,  0.0000,  0.0000,  0.3656,  0.0000,  0.0000,  0.0000,  0.0000]])
tensor([[[-0.5160,  0.0000,  0.1092,  0.0922,  0.0000, -0.2913, -0.1705, -0.0078],
         [ 0.0059, -0.5158,  0.0487,  0.0356, -0.2911, -0.0280,  0.0643,  0.1626],
         [-0.1575,  0.0191, -0.4388, -0.2793,  0.0899, -0.0853,  0.6793,  0.0832],
         [ 0.0209, -0.1561, -0.1054,  0.1762, -0.0866,  0.0817, -0.1028, -0.4679],
         [ 0.0000, -0.2913, -0.1705, -0.0078, -0.5160,  0.0000,  0.1092,  0.0922],
         [-0.2913,  0.0022,  0.0614,  0.1631,  0.0017, -0.5160,  0.0496,  0.0260],
         [-0.0652, -0.0889,  0.3769, -0.0596, -0.1511, -0.0264, -0.1630, -0.2675],
         [-0.0890, -0.0645, -0.2472, -0.4959, -0.0259, -0.1516, -0.1986, -0.2816]],

        [[ 0.0000, -0.2100, -0.1229,  0.0109,  0.7160,  0.0000, -0.1515,  0.0664],
         [-0.2098, -0.0145,  0.0458, -0.2253, -0.0114,  0.7155, -0.0669,  0.0238],
         [-0.0470, -0.0641,  0.2716,  0.0827,  0.2096,  0.0366,  0.2261, -0.1928],
         [-0.0635, -0.0514, -0.1815,  0.6940,  0.0332,  0.2130,  0.2726, -0.2176],
         [ 0.7160,  0.0000, -0.1515,  0.0664,  0.0000, -0.2100, -0.1229,  0.0109],
         [ 0.0009,  0.7160, -0.0695,  0.0206, -0.2099, -0.0042,  0.0448, -0.2266],
         [ 0.2186, -0.0265,  0.6088, -0.2013,  0.0648, -0.0615,  0.4896, -0.1154],
         [-0.0263,  0.2188,  0.1541,  0.1425, -0.0617,  0.0636, -0.0679,  0.6583]]], dtype=torch.float64)
tensors, ys, Us, params = get_rnd_encoded_circuits(backend=simulator.backend,
                                                   tokenizer=tokenizer,
                                                   condition=CircuitConditionType.UNITARY,
                                                   samples=128,
                                                   num_of_qubits=4,
                                                   min_gates=4,
                                                   max_gates=16,
                                                   min_sub_gate_pool_cnt=2)
display(tensors[0], ys[0], params[0], Us.shape)
[INFO]: Generated unique circuits: 125.
[INFO]: No max_num_params provided, infered p_max_para=3, p_min_value=tensor(-0.9998) and p_max_value=tensor(0.9996).
tensor([[-2, -2,  4,  2,  0,  4,  2, -2,  0,  0,  0,  4,  0,  0,  0,  0],
        [ 0, -2,  0,  0,  2,  0, -2,  2,  0,  2,  0,  0, -2,  0,  0,  0],
        [ 2,  2,  4, -2, -2,  4, -2, -2,  4, -2,  4,  4,  2,  0,  0,  0],
        [-2,  0,  0, -2, -2,  0,  0,  0,  4, -2,  4,  0, -2,  0,  0,  0]], dtype=torch.int32)
np.str_("Compile using: ['ccx', 'cp']")
tensor([[ 0.0000,  0.0000,  0.9185,  0.0000,  0.0000, -0.0226,  0.0000,  0.0000, -0.1110,  0.0000, -0.8066, -0.6071,  0.0000,  0.0000,  0.0000,  0.0000],
        [ 0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000],
        [ 0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000]])
torch.Size([125, 2, 16, 16])
ys[:5]
array(["Compile using: ['ccx', 'cp']", "Compile using: ['ccx', 'u']", "Compile using: ['ccx', 'u', 'cp']", "Compile using: ['rx', 'ccx', 'u', 'cp']", "Compile using: ['ccx', 'cp']"], dtype='<U39')

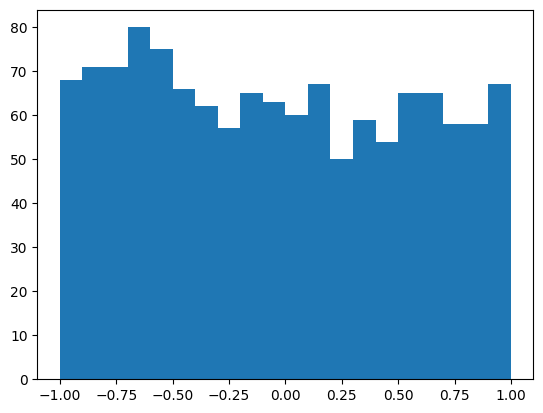

data = params.flatten()
ind  = data.nonzero(as_tuple=True)

plt.hist(data[ind], bins=20)
plt.show()

def test_unitary(tensor, param, should_U, rtol, atol):
    instructions = tokenizer.decode(tensor, param)
    qc   = simulator.genqc_to_backend(instructions)
    is_U = simulator.backend.get_unitary(qc)
    is_U = torch.stack([torch.from_numpy(np.real(is_U)), torch.from_numpy(np.imag(is_U))])

    assert torch.allclose(is_U, should_U, rtol=rtol, atol=atol)
for tensor, param, should_U in tqdm(zip(tensors, params, Us), total=tensors.shape[0]):
    test_unitary(tensor, param, should_U, rtol=1e-03, atol=1e-05)

Generate Dataset

tensors, ys, Us, params = generate_circuit_dataset(backend=simulator.backend,
                                                   tokenizer=tokenizer,
                                                   condition=CircuitConditionType.UNITARY,
                                                   total_samples=512,
                                                   n_jobs=2,
                                                   num_of_qubits=3,
                                                   min_gates=4,
                                                   max_gates=16,
                                                   unitary_dtype=torch.float64,
                                                   min_sub_gate_pool_cnt=2)
display(Us.dtype, Us.shape)
[INFO]: Generated 498 valid circuits.
[INFO]: After filtering unique circuits: 494.
torch.float64
torch.Size([494, 2, 8, 8])
for tensor, param, should_U in tqdm(zip(tensors, params, Us), total=tensors.shape[0]):
    test_unitary(tensor, param, should_U, rtol=1e-03, atol=1e-05)
