Rotational preset embedder

Class for a rotational preset embedder.

MultimodialEmbedder


source

MultimodialEmbedder

 MultimodialEmbedder (zero_sum_space:bool)

A basic nn.Module with IO functionality.

MultimodialPresetEmbedder


source

MultimodialPresetEmbedderConfig

 MultimodialPresetEmbedderConfig (clr_dim:int, num_clrs:int,
                                  params_dim:int, num_params_per_clr:int,
                                  zero_sum_space:bool,
                                  explicit_node_type_embeddings:bool,
                                  channel_last:bool, parametrized_tokens:O
                                  ptional[list[int]]=None, unique_class_va
                                  lues:Optional[list[int]]=None)

source

MultimodialPresetEmbedder

 MultimodialPresetEmbedder (clr_dim:int, num_clrs:int, params_dim:int,
                            num_params_per_clr:int, zero_sum_space:bool,
                            explicit_node_type_embeddings:bool=True,
                            channel_last:bool=True,
                            parametrized_tokens:Optional[list[int]]=None,
                            unique_class_values:Optional[list[int]]=None)

Embedder class for multimodial discrete and continuous data, e.g. parametrized gates/actions. Embeddings are fixed and not trained.

RotationalMultimodialPresetEmbedder


source

RotationalMultimodialPresetEmbedder

 RotationalMultimodialPresetEmbedder (clr_dim:int, num_clrs:int,
                                      params_dim:int,
                                      num_params_per_clr:int,
                                      zero_sum_space:bool, explicit_node_t
                                      ype_embeddings:bool=True,
                                      channel_last:bool=True, parametrized
                                      _tokens:Optional[list[int]]=None, un
                                      ique_class_values:Optional[list[int]
                                      ]=None)

Embedder class for multimodial discrete and continuous data, e.g. parametrized gates/actions. Embeddings are fixed and not trained.

RotationalMultimodialPresetEmbedderTiny

Has the same logic as RotationalMultimodialPresetEmbedder, but uses the same parameter vector-subspace for all tokens. This makes the parameter embeddings the same for all tokens while reducing the dimesionality of the embeddings, i.e. it is independent of the number of tokens.


source

RotationalMultimodialPresetEmbedderTiny

 RotationalMultimodialPresetEmbedderTiny (clr_dim:int, num_clrs:int,
                                          params_dim:int,
                                          num_params_per_clr:int,
                                          zero_sum_space:bool, explicit_no
                                          de_type_embeddings:bool=True,
                                          channel_last:bool=True, parametr
                                          ized_tokens:Optional[list[int]]=
                                          None, unique_class_values:Option
                                          al[list[int]]=None)

Mostly the same as RotationalMultimodialPresetEmbedder, but the param embedding is not depending on the tokens.

Test

Encode decode check: fixed tensor

s, t = 3, 8

rnd_tokens = torch.tensor([[[ 2, 0, 1, 0,  2, -3, 0,  8],
                            [-2, 4, 0, 5,  2,  3, 6,  8],
                            [ 2, 4, 0, 0, -2,  0, 0,  8]],

                           [[ 8, 8, 1, 0,  2, -3, 0,  8],
                            [ 8, 8, 0, 7,  2,  3, 1,  8],
                            [ 8, 8, 8, 8,  8,  8, 8,  8]]])

rnd_params = torch.rand((2, 1, t))*2-1
unique_class_values = None
unique_class_values = rnd_tokens.unique(sorted=True)

num_clrs = 9
num_params_per_clr = 1
parametrized_tokens = [5, 6, 7]

clr_dim    = 1
params_dim = 1

embedder = RotationalMultimodialPresetEmbedderTiny(clr_dim=clr_dim,
                                               num_clrs=num_clrs,
                                               params_dim=params_dim,
                                               num_params_per_clr=num_params_per_clr,
                                               zero_sum_space=True,
                                               explicit_node_type_embeddings=True,
                                               channel_last=True,
                                               parametrized_tokens=parametrized_tokens,
                                               unique_class_values=unique_class_values.tolist())
[INFO]: provided `unique_class_values` ([-3, -2, 0, 1, 2, 3, 4, 5, 6, 7, 8]), enforcing `num_clrs=len(unique_class_values)=11`.
[WARNING]: We need at least a `params_dim` (is 1) of `2*num_params_per_clr` (is 2), automatically setting `params_dim` to 2 to inforce this!
[WARNING]: `params_dim` is set to the minimum `2*num_params_per_clr`=2, but for `zero_sum_space=True` we need one more dimension, automatically setting it to `2*num_params_per_clr+1` 3.
[WARNING]: `clr_dim` is set to 1 and `explicit_node_type_embeddings=False`, but for `zero_sum_space=True` we need one more dimension than the number of tokens `num_clrs` (is 11), automatically setting it to `clr_dim=num_clrs+1` 12.
[INFO]: Created `nn.Embedding` with a total of 13 vectors in a 15 dimensional space.
rnd_tokens, rnd_params
(tensor([[[ 2,  0,  1,  0,  2, -3,  0,  8],
          [-2,  4,  0,  5,  2,  3,  6,  8],
          [ 2,  4,  0,  0, -2,  0,  0,  8]],

         [[ 8,  8,  1,  0,  2, -3,  0,  8],
          [ 8,  8,  0,  7,  2,  3,  1,  8],
          [ 8,  8,  8,  8,  8,  8,  8,  8]]]),
 tensor([[[-0.0690,  0.7864,  0.9059,  0.3405,  0.9263, -0.5743,  0.6541,  0.8584]],

         [[-0.3695, -0.8219,  0.2678, -0.3850, -0.5806, -0.2786,  0.0526,  0.5283]]]))
rnd_tokens_cls = embedder.tokens_to_unique_class_values(rnd_tokens)
rnd_tokens_cls
tensor([[[ 4,  2,  3,  2,  4,  0,  2, 10],
         [ 1,  6,  2,  7,  4,  5,  8, 10],
         [ 4,  6,  2,  2,  1,  2,  2, 10]],

        [[10, 10,  3,  2,  4,  0,  2, 10],
         [10, 10,  2,  9,  4,  5,  3, 10],
         [10, 10, 10, 10, 10, 10, 10, 10]]])
enc_tensor = embedder.embed(rnd_tokens_cls, rnd_params)
print(enc_tensor.shape)

recon_tensor, recon_params = embedder.invert(enc_tensor, reduce_spatial=1)
recon_tensor, recon_params
torch.Size([2, 3, 8, 15])
(tensor([[[ 2,  0,  1,  0,  2, -3,  0,  8],
          [-2,  4,  0,  5,  2,  3,  6,  8],
          [ 2,  4,  0,  0, -2,  0,  0,  8]],

         [[ 8,  8,  1,  0,  2, -3,  0,  8],
          [ 8,  8,  0,  7,  2,  3,  1,  8],
          [ 8,  8,  8,  8,  8,  8,  8,  8]]]),
 tensor([[[ 0.0000,  0.0000,  0.0000,  0.3405,  0.0000,  0.0000,  0.6541,  0.0000]],

         [[ 0.0000,  0.0000,  0.0000, -0.3850,  0.0000,  0.0000,  0.0000,  0.0000]]]))
assert torch.allclose(recon_tensor, rnd_tokens)
assert not torch.allclose(recon_params, rnd_params, atol=1e-06)   # note decoding puts 0s on all non param times, but we had rnd ones

pmask = embedder.get_parametrized_mask(embedder.tokens_to_unique_class_values(recon_tensor))
assert torch.allclose(torch.where(pmask.any(1, keepdim=True), recon_params, 0.0), torch.where(pmask.any(1, keepdim=True), rnd_params, 0.0), atol=1e-06)

Encode decode check: random circuits

from genQC.platform.simulation import Simulator, CircuitBackendType
from genQC.platform.tokenizer.circuits_tokenizer import CircuitTokenizer, Vocabulary
from genQC.platform.circuits_generation import get_rnd_encoded_circuits, CircuitConditionType
from genQC.dataset.balancing import get_tensor_gate_length
g = ['h', 'cx', 'ccx', 'swap', 'rx', 'ry', 'cp']

simulator = Simulator(CircuitBackendType.QISKIT)
tokenizer = CircuitTokenizer({gi:i+1 for i,gi in enumerate(g)})
tokenizer.vocabulary
{'h': 1, 'cx': 2, 'ccx': 3, 'swap': 4, 'rx': 5, 'ry': 6, 'cp': 7}
parametrized_tokens = CircuitTokenizer.get_parametrized_tokens(tokenizer.vocabulary)
parametrized_tokens
[5, 6, 7]
def get_rnd_qc():
    tensors, ys, Us, params = get_rnd_encoded_circuits(backend=simulator.backend,
                                                       tokenizer=tokenizer,
                                                       condition=CircuitConditionType.UNITARY,
                                                       samples=b,
                                                       num_of_qubits=s,
                                                       min_gates=2,
                                                       max_gates=t,
                                                       min_sub_gate_pool_cnt=len(tokenizer.vocabulary),
                                                       optimized=False)

    l = get_tensor_gate_length(tensors, padding_token=0)
    for i, li in enumerate(l):
        tensors[i, :, li:] = 8

    return tensors, ys, Us, params
b    = 512
s, t = 4, 24

tensors, ys, Us, params = get_rnd_qc()
tensors[0]
[INFO]: Generated unique circuits: 511.
[INFO]: No max_num_params provided, infered p_max_para=1, p_min_value=tensor(-0.9999) and p_max_value=tensor(0.9992).
tensor([[-3, -3,  0,  0,  4,  0, -2,  2,  0,  0,  0,  0,  0,  3,  0,  0,  0,  0, -3,  0,  4,  7, -3,  4],
        [-3,  3,  0,  0,  4,  0,  0, -2,  1,  7,  3,  0,  6,  0,  6,  0, -2,  7, -3,  0,  0,  7,  3,  0],
        [ 0, -3,  7,  5,  0,  1,  2,  0,  0,  0, -3,  4,  0, -3,  0,  1,  0,  7,  3,  0,  4,  0, -3,  0],
        [ 3,  0,  7,  0,  0,  0,  0,  0,  0,  7, -3,  4,  0, -3,  0,  0,  2,  0,  0,  5,  0,  0,  0,  4]], dtype=torch.int32)
unique_class_values = None
unique_class_values = tensors.unique(sorted=True)

num_clrs = len(tokenizer.vocabulary) + 1 + 1
num_params_per_clr = 3 if "u" in g else 1

clr_dim    =1
params_dim = 1

embedder = RotationalMultimodialPresetEmbedderTiny(clr_dim=clr_dim,
                                                   num_clrs=num_clrs,
                                                   params_dim=params_dim,
                                                   num_params_per_clr=num_params_per_clr,
                                                   zero_sum_space=True,
                                                   explicit_node_type_embeddings=True,
                                                   channel_last=True,
                                                   parametrized_tokens=parametrized_tokens,
                                                   unique_class_values=unique_class_values.tolist())
[INFO]: provided `unique_class_values` ([-3, -2, 0, 1, 2, 3, 4, 5, 6, 7, 8]), enforcing `num_clrs=len(unique_class_values)=11`.
[WARNING]: We need at least a `params_dim` (is 1) of `2*num_params_per_clr` (is 2), automatically setting `params_dim` to 2 to inforce this!
[WARNING]: `params_dim` is set to the minimum `2*num_params_per_clr`=2, but for `zero_sum_space=True` we need one more dimension, automatically setting it to `2*num_params_per_clr+1` 3.
[WARNING]: `clr_dim` is set to 1 and `explicit_node_type_embeddings=False`, but for `zero_sum_space=True` we need one more dimension than the number of tokens `num_clrs` (is 11), automatically setting it to `clr_dim=num_clrs+1` 12.
[INFO]: Created `nn.Embedding` with a total of 13 vectors in a 15 dimensional space.
tensors = embedder.tokens_to_unique_class_values(tensors)
tensors[0]
tensor([[0, 0, 2, 2, 6, 2, 1, 4, 2, 2, 2, 2, 2, 5, 2, 2, 2, 2, 0, 2, 6, 9, 0, 6],
        [0, 5, 2, 2, 6, 2, 2, 1, 3, 9, 5, 2, 8, 2, 8, 2, 1, 9, 0, 2, 2, 9, 5, 2],
        [2, 0, 9, 7, 2, 3, 4, 2, 2, 2, 0, 6, 2, 0, 2, 3, 2, 9, 5, 2, 6, 2, 0, 2],
        [5, 2, 9, 2, 2, 2, 2, 2, 2, 9, 0, 6, 2, 0, 2, 2, 4, 2, 2, 7, 2, 2, 2, 6]])
np.sqrt(embedder.clr_dim)
np.float64(3.4641016151377544)
#embedder single token clr mean:
for i in range(embedder._num_discrete_embeddings):
    a = embedder.emb_clr(torch.tensor([i]))[:, :embedder.clr_dim]
    print(f"token  {str(i):>2}:   mean {a.mean():0.3}   norm {torch.linalg.vector_norm(a):0.3}    std {a.std(correction=0):0.3}")

for i in range(embedder._num_param_embeddings):
    a = embedder.emb_clr(torch.tensor([embedder._num_discrete_embeddings+i]))[:, embedder.clr_dim:]
    print(f"params {str(i):>2}:   mean {a.mean():0.3}   norm {torch.linalg.vector_norm(a):0.3}    std {a.std(correction=0):0.3}")
token   0:   mean -1.49e-08   norm 3.46    std 1.0
token   1:   mean 4.97e-09   norm 3.46    std 1.0
token   2:   mean -1.49e-08   norm 3.46    std 1.0
token   3:   mean -2.48e-08   norm 3.46    std 1.0
token   4:   mean 0.0   norm 3.46    std 1.0
token   5:   mean 1.49e-08   norm 3.46    std 1.0
token   6:   mean -1.24e-09   norm 3.46    std 1.0
token   7:   mean 1.99e-08   norm 3.46    std 1.0
token   8:   mean 1.99e-08   norm 3.46    std 1.0
token   9:   mean -2.48e-09   norm 3.46    std 1.0
token  10:   mean 9.93e-09   norm 3.46    std 1.0
params  0:   mean -1.99e-08   norm 1.73    std 1.0
params  1:   mean -3.97e-08   norm 1.73    std 1.0

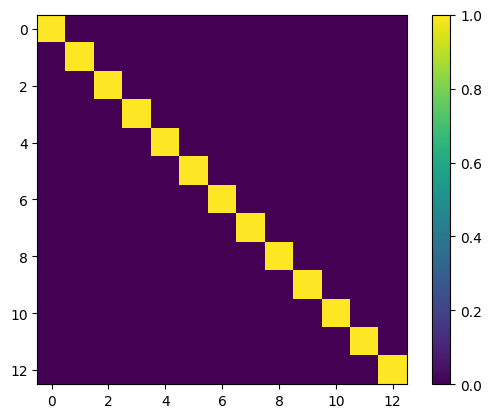

#get scalar produkt of all
p = torch.zeros((embedder.num_embeddings, embedder.num_embeddings))
for i,j in itertools.product(range(embedder.num_embeddings), range(embedder.num_embeddings)):
    v1 = embedder.emb_clr(torch.tensor([i]))
    v2 = embedder.emb_clr(torch.tensor([j]))
    p[i, j] = (v1 * v2).sum() / (torch.linalg.norm(v1)*torch.linalg.norm(v2))

plt.imshow(p)
plt.colorbar()
plt.show()

#before normalization global scale
enc_tensor = embedder.embed(tensors, params)
enc_tensor.mean(), enc_tensor.std(correction=0)
(tensor(-7.4943e-09), tensor(1.))
enc_tensor[..., :embedder.clr_dim].std(-1, correction=0).unique()
tensor([1.])
enc_tensor[..., embedder.clr_dim:].std(-1, correction=0).unique()
tensor([1.0000, 1.0000, 1.0000, 1.0000])
enc_tensor[..., :embedder.clr_dim].var(correction=0)
tensor(1.)
recon_tensor, recon_params = embedder.invert(enc_tensor)

print(f"{tensors.shape=}")
print(f"{params.shape=}")
print((params-recon_params).abs().max())

assert torch.allclose(embedder.unique_class_values_to_tokens(tensors).long(), recon_tensor)
assert torch.allclose(params, recon_params, atol=1e-07)
tensors.shape=torch.Size([511, 4, 24])
params.shape=torch.Size([511, 1, 24])
tensor(5.9605e-08)
Back to top
Base embedder
Transformers and attention


Copyright 2025, Florian Fürrutter

  • Report an issue
  • View source
