from genQC.imports import *
import genQC.utils.misc_utils as util
from genQC.pipeline.diffusion_pipeline import DiffusionPipeline
from genQC.platform.tokenizer.circuits_tokenizer import CircuitTokenizer
from genQC.platform.simulation import Simulator, CircuitBackendType
from genQC.inference.sampling import generate_tensors, decode_tensors_to_backend
from genQC.inference.evaluation_helper import get_srvs
Generate a circuit
Entanglement generation
Quantum circuits
Pretrained model
A minimal example to generate a circuit. We load a pre-trained (SRV, 3 to 8 qubit) model and condition on a given Schmidt-Rank-Vector (SRV).
# clean existing memory alloc
util.MemoryCleaner.purge_mem() = util.infer_torch_device() # use cuda if we can
device device
[INFO]: Cuda device has a capability of 8.6 (>= 8), allowing tf32 matmul.
device(type='cuda')
# We set a seed to pytorch, numpy and python.
# Note: This will also set deterministic algorithms, possibly at the cost of reduced performance!
0) util.set_seed(
Setup and load
Load the pre-trained model directly from Hugging Face: Floki00/qc_srv_3to8qubit.
= DiffusionPipeline.from_pretrained("Floki00/qc_srv_3to8qubit", device) pipeline
Check on what gates the model was trained
pipeline.gate_pool
['h', 'cx']
Set 20 sample steps and use rescaled guidance-formula.
= "rescaled"
pipeline.guidance_sample_mode 20) pipeline.scheduler.set_timesteps(
Inference / sampling
Set our desired condition SRV
= [2, 1, 2, 1, 2] # set your target SRV; can be 3 to 8 qubit
srv = len(srv)
num_of_qubits
= f"Generate SRV: {srv}" # model was trained with this phrase
prompt prompt
'Generate SRV: [2, 1, 2, 1, 2]'
Define sample parameters
= 10 # guidance scale
g = 16 # how many time steps the tensor encoding has
max_gates = 64 # how many circuits to generate samples
Sample tokenized circuits
= generate_tensors(pipeline, prompt, samples, num_of_qubits, num_of_qubits, max_gates, g, no_bar=False) out_tensor
[INFO]: (generate_comp_tensors) Generated 64 tensors
Check how many distinct tensors we got:
=0).shape[0] out_tensor.unique(dim
64
Let’s look what is generated. Note, 3 is the padding token (or empty action).
2] out_tensor[:
tensor([[[ 1, 0, 2, -2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 0, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 0, 1, -2, 0, -2, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 0, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 0, 0, 0, 2, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3]],
[[ 0, 0, 0, 2, 1, -2, 1, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 0, 0, 0, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 2, 1, -2, -2, 0, 2, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[ 0, 0, 0, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3],
[-2, 0, 2, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3]]], device='cuda:0')
Convert to qiskit circuit
To get a qiskit circuit we need to do:
- apply cosine similarity to go from embeddings to token matrices (the function
generate_tensors
did this already) - parse token matrix to qiskit and filter out error circuits
- calculate SRV and plot circuits
= {g:i+1 for i, g in enumerate(pipeline.gate_pool)}
vocabulary = CircuitTokenizer(vocabulary)
tokenizer = Simulator(CircuitBackendType.QISKIT) simulator
= decode_tensors_to_backend(simulator, tokenizer, out_tensor)
qc_list, error_cnt 0].__class__ qc_list[
qiskit.circuit.quantumcircuit.QuantumCircuit
Generated error circuits (token matrices that don’t correspond to circuits):
error_cnt
0
What SRVs did we get:
= get_srvs(simulator, qc_list)
srv_list 4] srv_list[:
[[2, 1, 2, 1, 2], [2, 1, 2, 1, 2], [2, 1, 2, 1, 2], [2, 1, 2, 1, 2]]
That is an accuracy of:
sum(srv==x for x in srv_list)/len(srv_list)
0.96875

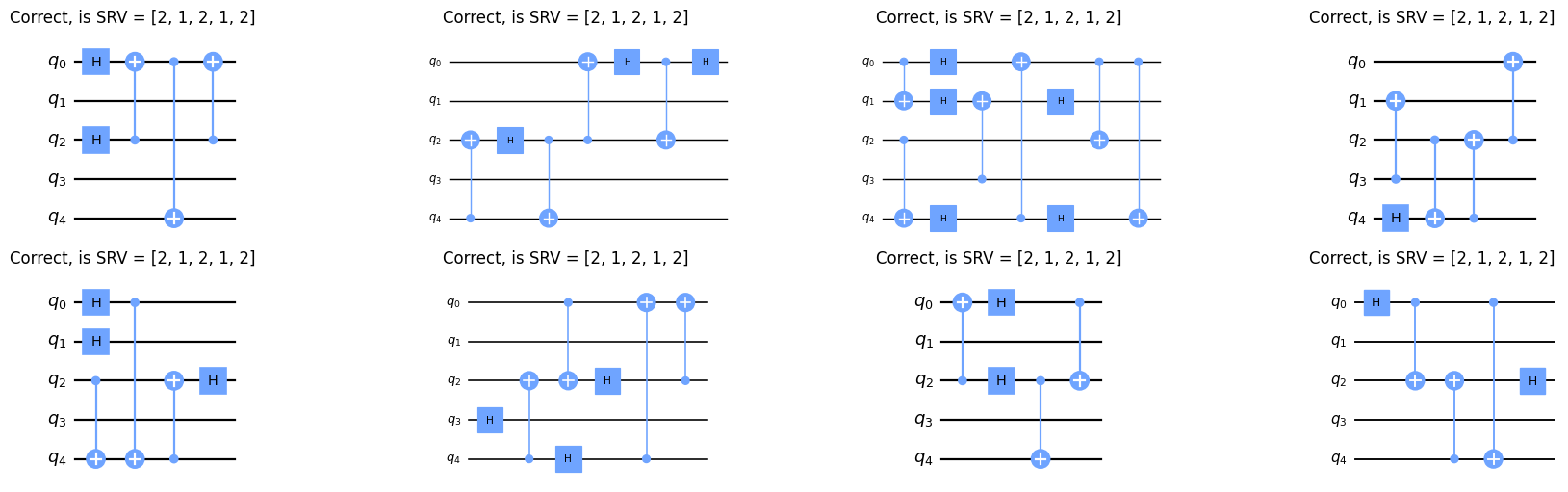

Finally plot some of the circuits:
= plt.subplots(2, 4, figsize=(18,5), constrained_layout=True)
fig, axs for qc,is_srv,ax in zip(qc_list, srv_list, axs.flatten()):
= [int(x) for x in is_srv]
is_srv "mpl", plot_barriers=False, ax=ax, style = "clifford")
qc.draw(f"{'Correct' if is_srv==srv else 'NOT correct'}, is SRV = {is_srv}")
ax.set_title( plt.show()
import genQC
print("genQC Version", genQC.__version__)
genQC Version 0.2.0
